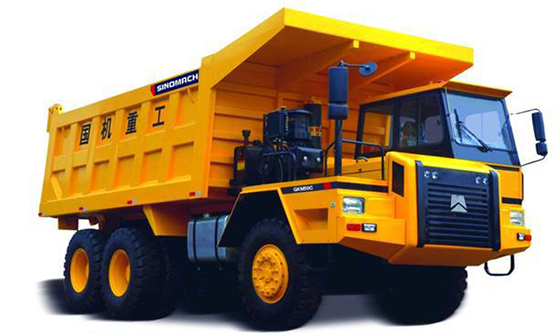

Non Road Wide Body Dump Series GKM93D Non Road Wide Body Dump Series GKM93D
Thông số kỹ thuật

Mainly applied in short-distance transport operations for open-pit mines, building materials mining and large-scale projects.

Product Features:

Designed for harsh conditions,optimized power system, professionally metched high-horsepower low speed high-torque engine specially designed for engineering applications, high-level whirlwind oil-bathed three-stage air filter, reliable and durable, with higher power reserve and torque reserve;2.Professional large cross-section high-strength frame, using three-layer high-quality managanese steel screw riveting technology, highly matched suspension system,equipped with large speed ratio two-gear reducing mining bridge,thereby increasing the vehicle loadcarring capacity significantly;3.Equipped with European hydraulic front support system,highly reliable;sealed and reliable push-in gas pipeline system and high-quality electrical connectors,effectively waterproof,dustproof,as well as highly advantaged in A1:I29 effect;4.Mature and stable dual-pipeline brake system,equipped with the combined brake chamber that integrates both service brake and parking brake as a whole,available in service braking,parking braking,and emergency braking functions;optional eddy-current retarder assisted braking system,excellent in braking performance;5.Wider driver cab,highly sealed,large operating space,wider field of vision,improving the comfort of driving or maneuvering;the driver cab is provided with manual/electric flipable system,multi-fuction adjustable spring seat,air conditioning and sleep berth;and optional reversing images,GPS system,thereby offering more user-friendly driving experience.

Main Technical Specifications
Model Unit GKM46D GKM50C GKM65C GKM65D/R/G(LNG) GKM80D/G(LNG) GKM93D
Kerb mass kg 18000 22000 23000 23000 26000 30000
Payload kg 30000 40000 50000 50000 60000 60000
Overall size(mm) mm 8700x2580x3800 8500x3165x3700 8500x3165x3800 8850x3265x3800 8850x3265x3900 9150X3365X3900
Cargo volume m³ 18 24 25 25 28/30 30/32
Drive type -- 6x4 6x4 6x4 6x4 6x4 6×4
Engine -- D10.34 D10.34 D10.38 D10.38/T12.38LNG WP12G430/T12.42LNG WP12G430
Max.Power kW 249 249 279 279 316/309 316
Max.Torque Nm 1490/1200~1500 1490/1200~1500 1560/1200~1500 1560/1200~1500; 1650/1200~1500 1870/1200~1600; 1820/1200~1500 1870(1200~1600rpm)
Transmission -- 10JSD160 FAST 10JSD160 9JSD180 FAST 9JSD180 7JSD180 FAST 7JSD180 10JSD180 FAST 10JSD180 10JSD220 FAST 10JSD220 10JSD220/FAST 10JSD220
Tyre size -- 12.00-20/14.00-20 14.00-24/13.00-25 14.00-24/13.00-25 14.00-24/13.00-25 14.00-24/14.00-25 14.00-25
Front axle load t 10 13 13 13 16 19
Drive axle load/Ratio t 2x18/6.733 Two-grade reducing 2x18/6.733 2x26/11.125 Two-grade reducing 2x26/11.125 2x26/11.125 Two-grade reducing 2x26/11.125 2x26/11.125 Two-grade reducing 2x26/11.125 2x26/11.125 Two-grade reducing 2x26/11.125 2x37/12.82 Two-grade reducing 2x37/12.82
Clutch -- 430mm 4300mm Diaphragm 430mm 4300mm Diaphragm 430mm 4300mm Diaphragm 430mm 4300mm Diaphragm 430mm 4300mm Diaphragm 430mm 4300mm Diaphragm
Max.speed km/h 85 48 48 48 60 54
Min.Turning radius m 10 10 10 10 11.5 11.8
Ground clearance mm 350 390 390 390 390 380
Grade ability % 40
