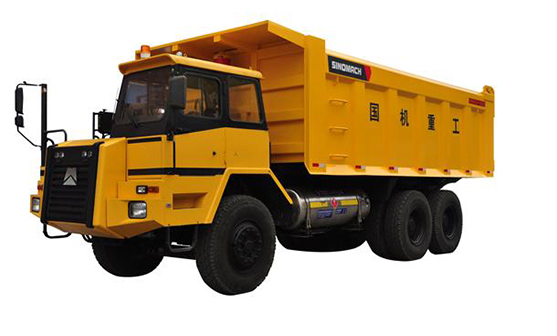

Non Road Wide Body Dump Series GKP80A/GKP80D/GKP80G Non Road Wide Body Dump Series GKP80A/GKP80D/GKP80G
Thông số kỹ thuật

Mainly applied in short-distance transport operations for port mineral transitions or flat road construction area.

Product Features:

 Equipped with professional custom power engineering used low speed high torque engine, its fuel economy is obvious.G series equipped with LNG gas engines, compared with same power diesel engine energy saving more than 30%;2. Equipped with big hub reduction gear engineering axle, redesign and check matched the suspension system, to make the axle movement space more reasonable and vehicle trafficbility stronger;3. Equipped with european technology hydraulic front support system, high reliability; Using sealing reliable quick plug type pneumatic system and the high quality electrical connectors, effective waterproof, dustproof, operation effect is good;4. Equipped with 500L enlarged volume diesel tank or 450L gas bottle, special engineering muffler, increase the battery life, improve driving comfort;5. Specially equipped with newly developed biased reversible wide-body cab, using the man-machine engineering design, with a sleep berth, storage box, etc;6. Optional reverse images and GPS, the operation is more comfortable and humanized improved significantly.

Main Technical Specifications
Model Unit GKP80A GKP80D GKP80GLNG燃气)
Kerb mass kg 26000 26000 26000
Payload kg 80000 80000 80000
Overall size(mm) mm 10300x3165x3710 10400x3265x3750 10400x3265x3750
Cargo volume 36 36 36
Drive type -- 6x4 6x4 6×4
Engine -- D10.38 D10.38 T12.38/42LNG
Max.Power kW 279 279 279/309
Max.Torque Nm 1560/1200~1500 1560/1200~1500 1560/1200~15001820/1200~1500
Transmission -- 9JSD220 FAST 9JSD220 10JSD220 FAST 10JSD220 10JSD220/FAST 10JSD220
Tyre size -- 14.00R25 14.00R25 14.00R25
Front axle load t 13 16 16
Drive axle load/Ratio t 2x26/11.125 Two-grade reducing 2x26/11.125 2x32/11.125 Two-grade reducing 2x32/11.125 2x37/12.82 Two-grade reducing 2x37/12.82
Clutch -- 430mm 4300mm Diaphragm 430mm 4300mm Diaphragm 430mm 4300mm Diaphragm
Max.speed km/h 65 68 62
Min.Turning radius m 11.9 11.9 11.9
Ground clearance mm 390 390 390
Grade ability % 30 30 30
Electric system v 24 24 24
Brake form -- Energy storage air break braking Energy storage air break braking Energy storage air break braking
Damping mode -- Steel spring-assisted oil shock absorber Steel spring-assisted oil shock absorber Steel spring-assisted oil shock absorber
